TOPLA ENERGY TRUCK BATTERIES
Topla Energy Truck battery designed for commercial vehicles is produced with hybrid Sb/Ca technology. Topla Energy Truck is real all rounder offering excellent power, capacity, cold start performance and reliability. With its liability and safety it represents allround battery which satisfies demands of all modern commercial vehicles.
Main features:
-
High starting capabilities.
-
Reliable starting at extreme Climatic conditions.
| Art. No. |
DIN Marking |
Short Code |
Ah (C20) |
Box Type |
EN (A) |
LxWxH (mm) |
BHD |
Layout |
Weight (kg) |
PCS/pallet (EUR/CNT) |
Remarks* |
TDS |
| 1000614 |
61028 |
ET11 |
110 |
60528 |
800 |
345x172x218/238 |
B0 |
0 |
26.5 |
36/48 |
H |
TDS |
| 1000617 |
61028 |
ET11P |
110 |
60528 |
800 |
345x175x218/238 |
B1 |
0 |
26.5 |
36/48 |
H |
TDS |
| 1000515 |
61044 |
ET11M |
110 |
MAC110 |
720 |
509x175x182/208 |
B3 |
3 |
31.0 |
24/40 |
H, HD |
TDS |
| 1000615 |
62512 |
ET12H |
125 |
62512 |
800 |
345x172x269/289 |
B0 |
0 |
31.0 |
24/36 |
H |
TDS |
| 1000616 |
63512 |
ET13H |
135 |
62512 |
800 |
345x172x269/289 |
B0 |
0 |
31.0 |
24/36 |
H |
TDS |
| 1003042 |
63530 |
ET13A |
135 |
A |
850 |
513×189×194/216 |
B0 |
3 |
35.3 |
24/35 |
H, HD |
TDS |
| 1000504 |
63544 |
ET13M |
135 |
MAC110 |
850 |
509×175×182/202 |
B3 |
3 |
33.1 |
24/40 |
H, HD |
TDS |
| 1003043 |
63545 |
ET13MR |
135 |
MAC110 |
850 |
509×175×182/202 |
B3 |
4 |
33.1 |
24/40 |
H, HD |
TDS |
| 1000507 |
65048 |
ET15M |
150 |
MAC110 |
1000 |
509×175×182/202 |
B3 |
3 |
36.4 |
24/40 |
H, HD |
TDS |
| 1000498 |
68032 |
ET18 |
180 |
B |
1100 |
512×223×194/216 |
B0 |
3 |
42.8 |
21/28 |
H, HD, EMS |
TDS |
| 1000500 |
69032 |
ET19 |
190 |
B |
1200 |
512×224×194/216 |
B0 |
3 |
42.8 |
21/28 |
H, HD, EMS |
TDS |
| 1003045 |
70027 |
ET20C |
200 |
C |
1200 |
518×273×214/235 |
B0 |
3 |
52.2 |
18/24 |
H, HD, EMS |
TDS |
| 1003046 |
72527 |
ET22 |
225 |
C |
1300 |
518×273×214/235 |
B0 |
3 |
55.5 |
18/24 |
H, HD, EMS |
TDS |
| 1000117 |
6TN |
EN11D7 |
110 |
D7 |
740 |
283×269×208/230 |
B0 |
2 |
30.8 |
24/36 |
H, HD |
TDS |
Remarks: A - Pole Adapter, AGM - Absorbed Glass Mat, DP - Dual Poles, EMS - Electrolyte Mixing System, H - Handle, HD - Heavy Duty, JIS - Japanese Poles, K - Kamina, KH - Kamina Handle, M - Lawn Mower Battery, ME - Magic Eye, P - Post Poles, S - Stud Poles, SMF - Maintenance Free = Sealed

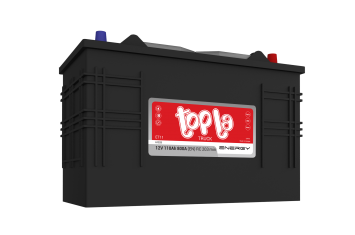

TOPLA ENERGY TRUCK
61028
Ident Nr.: 1000614
Capacity (Ah): 110
EN (A): 800
Dimensions (mm): 345x172x218/238
Box Type: 60528
DIN Marking: 61028
Short Code: ET11
TOPLA ENERGY TRUCK
61028
Ident Nr.: 1000617
Capacity (Ah): 110
EN (A): 800
Dimensions (mm): 345x175x218/238
Box Type: 60528
DIN Marking: 61028
Short Code: ET11P

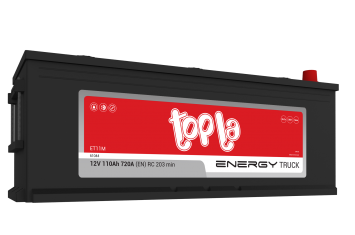

TOPLA ENERGY TRUCK
61044
Ident Nr.: 1000515
Capacity (Ah): 110
EN (A): 720
Dimensions (mm): 509x175x182/208
Box Type: MAC110
DIN Marking: 61044
Short Code: ET11M
TOPLA ENERGY TRUCK
62512
Ident Nr.: 1000615
Capacity (Ah): 125
EN (A): 800
Dimensions (mm): 345x172x269/289
Box Type: 62512
DIN Marking: 62512
Short Code: ET12H

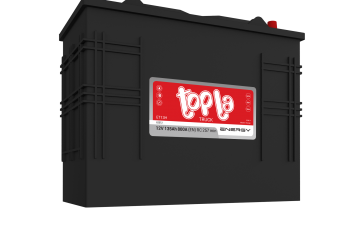

TOPLA ENERGY TRUCK
63512
Ident Nr.: 1000616
Capacity (Ah): 135
EN (A): 800
Dimensions (mm): 345x172x269/289
Box Type: 62512
DIN Marking: 63512
Short Code: ET13H

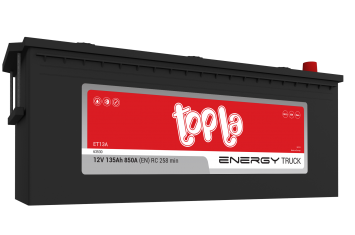

TOPLA ENERGY TRUCK
63530
Ident Nr.: 1003042
Capacity (Ah): 135
EN (A): 850
Dimensions (mm): 513×189×194/216
Box Type: A
DIN Marking: 63530
Short Code: ET13A
TOPLA ENERGY TRUCK
63544
Ident Nr.: 1000504
Capacity (Ah): 135
EN (A): 850
Dimensions (mm): 509×175×182/202
Box Type: MAC110
DIN Marking: 63544
Short Code: ET13M

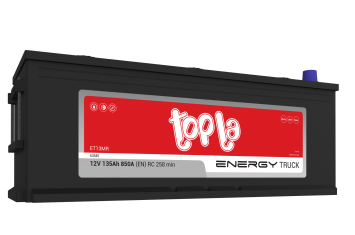

TOPLA ENERGY TRUCK
63545
Ident Nr.: 1003043
Capacity (Ah): 135
EN (A): 850
Dimensions (mm): 509×175×182/202
Box Type: MAC110
DIN Marking: 63545
Short Code: ET13MR
TOPLA ENERGY TRUCK
65048
Ident Nr.: 1000507
Capacity (Ah): 150
EN (A): 1000
Dimensions (mm): 509×175×182/202
Box Type: MAC110
DIN Marking: 65048
Short Code: ET15M

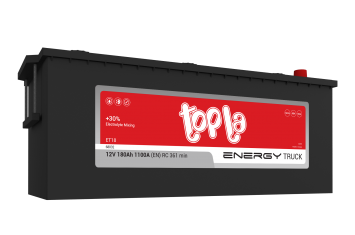

TOPLA ENERGY TRUCK
68032
Ident Nr.: 1000498
Capacity (Ah): 180
EN (A): 1100
Dimensions (mm): 512×223×194/216
Box Type: B
DIN Marking: 68032
Short Code: ET18
TOPLA ENERGY TRUCK
69032
Ident Nr.: 1000500
Capacity (Ah): 190
EN (A): 1200
Dimensions (mm): 512×224×194/216
Box Type: B
DIN Marking: 69032
Short Code: ET19
TOPLA ENERGY TRUCK
70027
Ident Nr.: 1003045
Capacity (Ah): 200
EN (A): 1200
Dimensions (mm): 518×273×214/235
Box Type: C
DIN Marking: 70027
Short Code: ET20C

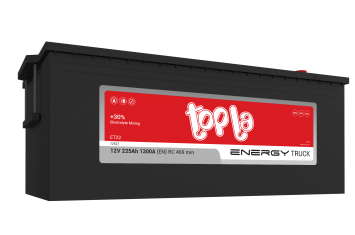

TOPLA ENERGY TRUCK
72527
Ident Nr.: 1003046
Capacity (Ah): 225
EN (A): 1300
Dimensions (mm): 518×273×214/235
Box Type: C
DIN Marking: 72527
Short Code: ET22

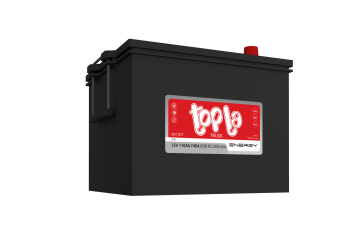

TOPLA ENERGY TRUCK
6TN
Ident Nr.: 1000117
Capacity (Ah): 110
EN (A): 740
Dimensions (mm): 283×269×208/230
Box Type: D7
DIN Marking: 6TN
Short Code: EN11D7
