TAB HYBRID INVERTERS

TAB Hybrid Inverters are combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

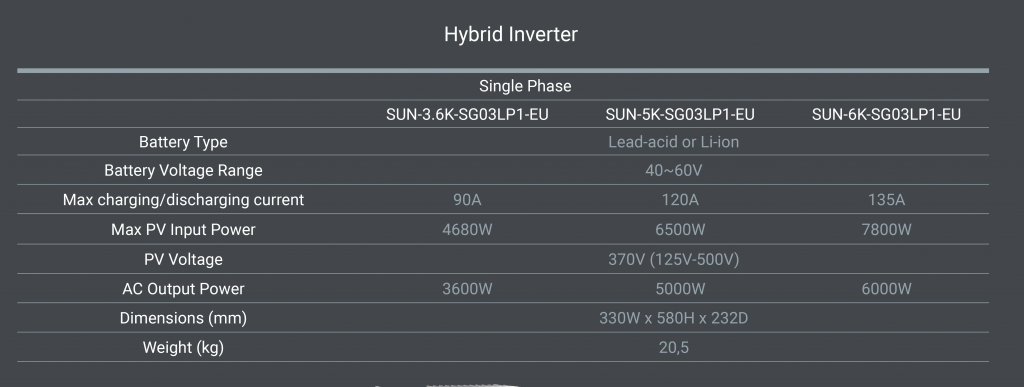

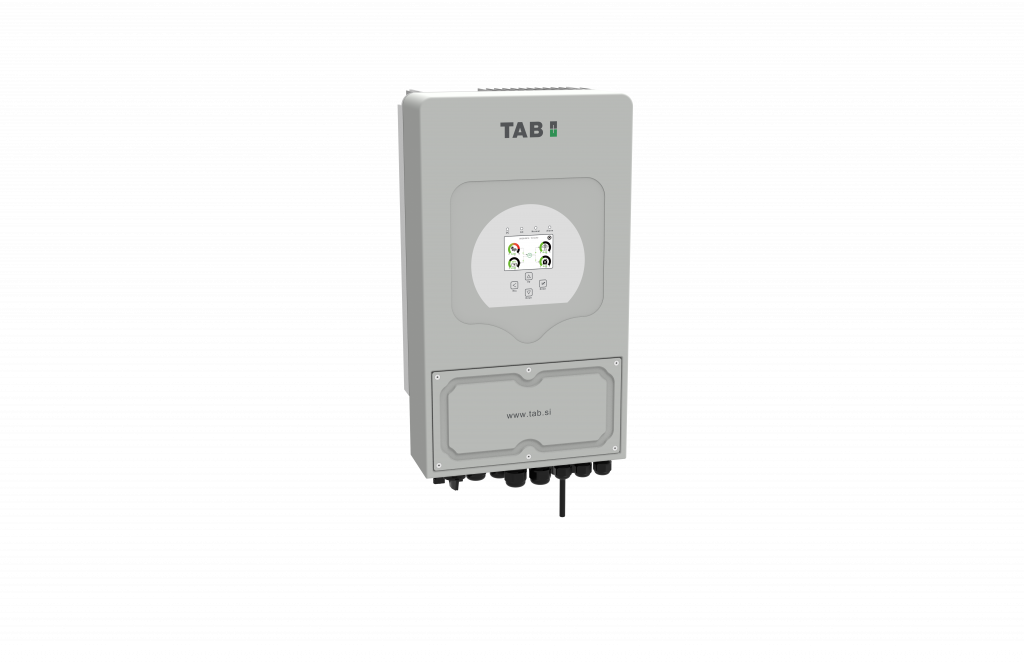

TAB Single Phase Hybrid Inverter

TAB Single Phase hybrid inverter is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via Inverter. Finally, the stored energy can be released when the loads require it.  equipped with RS485/CAN port for battery communication.

Main Features:

  • Self-consumption and feed-in to the grid.
  • Auto restart while AC is recovering.
  • Programmable supply priority for battery or grid.
  • Programmable multiple operation modes: On grid, off grid and UPS.
  • Configurable battery charging current/voltage based on applications by LCD setting.
  • Configurable AC/Solar/Generator Charger priority by LCD setting.
  • Compatible with mains voltage or generator power.
  • Overload/over temperature/short circuit protection.
  • Smart battery charger design for optimized battery performance.
  • With limit function, prevent excess power overflow to the grid.
  • Supporting WIFI monitoring and build-in 2 strings of MPP trackers
  • Smart settable three stages MPPT charging for optimized battery performance.
  • Time of use function.
  • Smart Load Function.

TDS

USER MANUAL

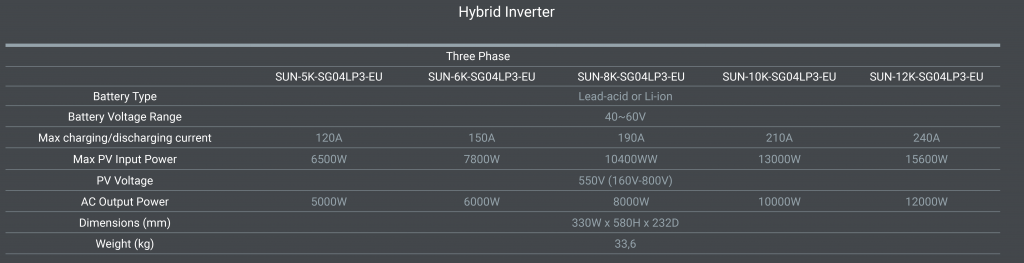

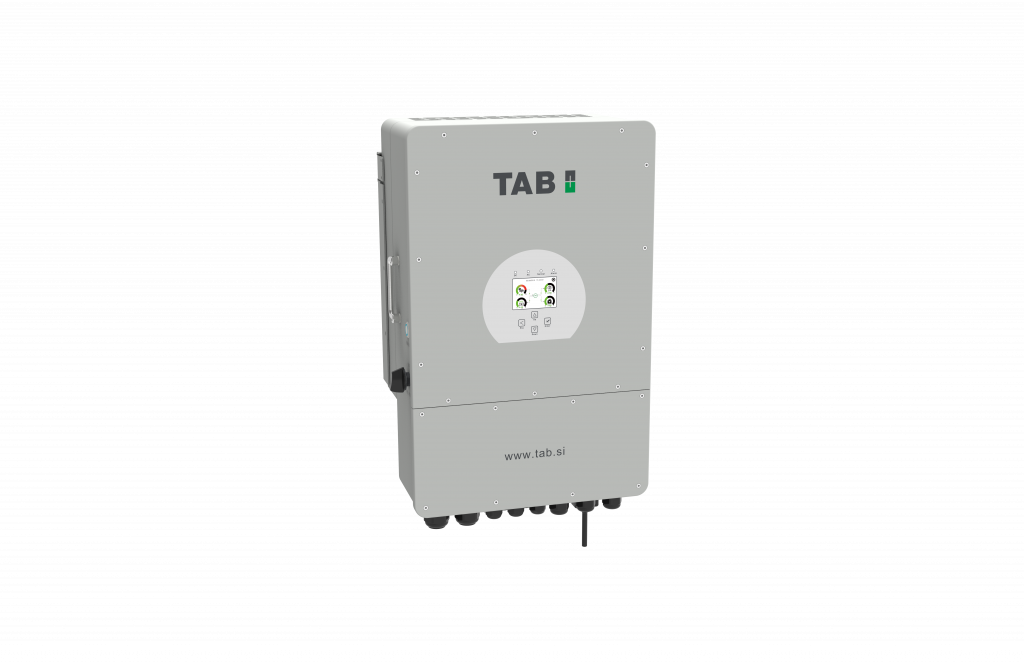

TAB Three Phase Hybrid Inverter

TAB Three Phase Hybrid Inverter is new hybrid inverter that supports three phase unbalanced output, extending the application scenarios. It is equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

Main Features:

  • 230/400V Three Phase Pure sine wave Inverter.
  • Self-consumption and feed-in to the grid.
  • Auto restart while AC is recovering.
  • Programmable supply priority for battery or grid.
  • Programmable multiple operation modes: On grid, off grid and UPS.
  • Configurable battery charging current/voltage based on applications by LCD setting.
  • Configurable AC/Solar/Generator Charger priority by LCD setting.
  • Compatible with mains voltage or generator power.
  • Overload/over temperature/short circuit protection.
  • Smart battery charger design for optimized battery performance.
  • With limit function, prevent excess power overflow to the grid.
  • Supporting WIFI monitoring and build-in 2 strings for 1 MPP trackes, 1 string for 1 MPP tracker.
  • Smart settable three stages MPPT charging for optimized battery performance.
  • Time of use function.
  • Smart Load Function.

TDS

USER MANUAL
