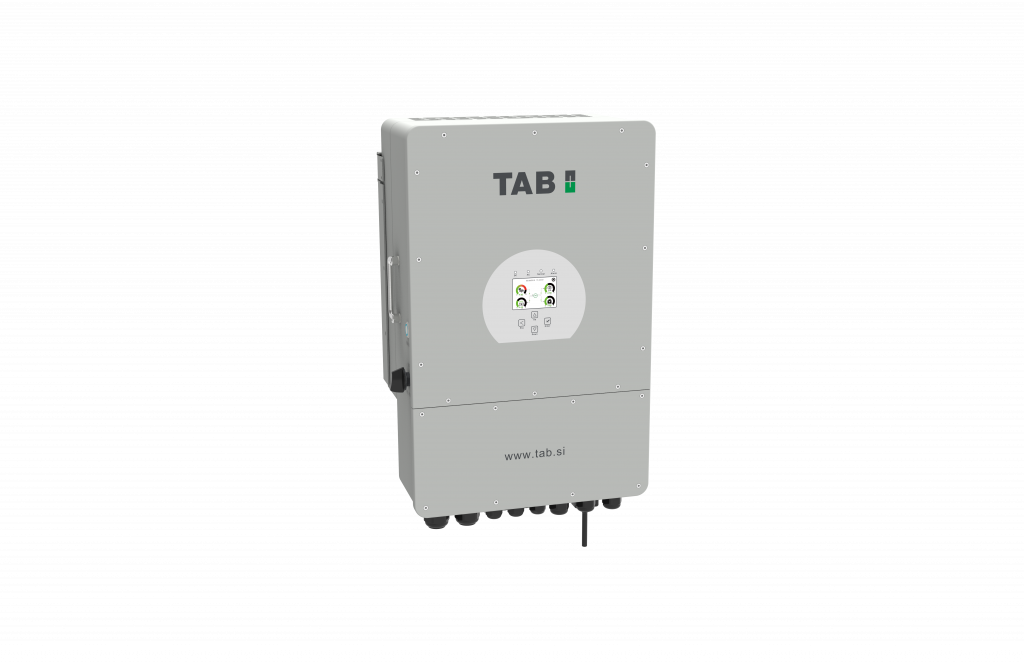

TAB Hybrid Inverter 3P

TAB Hybrid Inverter 3P

TAB Three Phase Hybrid Inverter is new hybrid inverter that supports three phase unbalanced output, extending the application scenarios. It is equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

Main Features:

  • 230/400V Three Phase Pure sine wave Inverter.
  • Self-consumption and feed-in to the grid.
  • Auto restart while AC is recovering.
  • Programmable supply priority for battery or grid.
  • Programmable multiple operation modes: On grid, off grid and UPS.
  • Configurable battery charging current/voltage based on applications by LCD setting.
  • Configurable AC/Solar/Generator Charger priority by LCD setting.
  • Compatible with mains voltage or generator power.
  • Overload/over temperature/short circuit protection.
  • Smart battery charger design for optimized battery performance.
  • With limit function, prevent excess power overflow to the grid.
  • Supporting WIFI monitoring and build-in 2 strings for 1 MPP trackes, 1 string for 1 MPP tracker.
  • Smart settable three stages MPPT charging for optimized battery performance.
  • Time of use function.
  • Smart Load Function.
Ident Number301465830158583015217
Inverter TypeTAB Hybrid Inverter 3P 8kWTAB Hybrid Inverter 3P 10kWTAB Hybrid Inverter 3P 12kW
Battery TypeLead-acid or Li-ionLead-acid or Li-ionLead-acid or Li-ion
Battery Voltage Range40~60V40~60V40~60V
Max charging/discharging current190A210A240A
Max PV Input Power10400W13000W15600W
PV Voltage550V (160V-800V)550V (160V-800V)550V (160V-800V)
AC Output Power8000W10000W12000W
Dimensions (W x L x H, mm)422 x 279 x 699,3422 x 279 x 699,3422 x 279 x 699,3
Weight (kg)33,633,633,6
