VOLTHOR AGM STOP&GO AUTOMOTIVE BATTERIES
VolThor AGM Stop&Go batteries are Valve Regulated Lead Acid (VRLA) batteries intended for use in vehicles with enhanced level Start/Stop function with break energy recuperation. VRLA AGM automotive battery is improved lead acid battery to its maximum performance.
The battery cells are closed by a pressure relief valve and electrolyte is immobilized in
Absorbed
Glass
Mat (
AGM). Plate stacks are kept in the cells under pressure.
The advanced construction of battery leads to improved performance in:
-
Very low water consumption due to internal oxygen recombination.
-
Preventing active material shedding boast more than three times as much cyclic capability as standard batteries and can be more discharged without any loss of functionality.
-
Increased cranking power due to better utilization of cell volume by more than 30 %.
-
High rate charge acceptance for recovering energy more quickly during driving phase.
-
Both side pasting of plates provides better corrosion resistance providing a longer life time.
-
No acid stratification like in flooded cells.
-
Explosive safe - minimum explosive gasses are produced.
-
Vibration resistance.
-
No acid leakage in case of crash.
| Art. No. |
DIN Marking |
Short Code |
Ah (C20) |
Box Type |
EN (A) |
LxWxH (mm) |
BHD |
Layout |
Weight (kg) |
PCS/pallet (EUR/CNT) |
Remarks* |
TDS |
| 1002835 |
L2 AGM |
VGM60 |
60 |
L2 |
680 |
242x175x190 |
B13 |
0 |
17.6 |
63/90 |
AGM, H |
TDS |
| 1002836 |
L3 AGM |
VGM70 |
70 |
L3 |
760 |
278x175x190 |
B13 |
0 |
20.3 |
51/80 |
AGM, H |
TDS |
| 1002837 |
L4 AGM |
VGM80 |
80 |
L4 |
800 |
315x175x190 |
B13 |
0 |
23.0 |
42/60 |
AGM, H |
TDS |
| 1002838 |
L5 AGM |
VGM95 |
95 |
L5 |
850 |
353x175x190 |
B13 |
0 |
25.8 |
36/60 |
AGM, H |
TDS |
| 1002839 |
L6 AGM |
VGM105 |
105 |
L6 |
950 |
394x175x190 |
B13 |
0 |
28.6 |
36/60 |
AGM, H |
TDS |
| 1002840 |
57024 AGM |
VGM75 |
75 |
D26 |
750 |
261x173x198/220 |
B1 |
0 |
20.0 |
48/80 |
AGM, H |
TDS |
| 1002841 |
57024 AGM |
VGM75X |
75 |
D26 |
750 |
261x173x198/220 |
B1 |
1 |
20.0 |
48/80 |
AGM, H |
TDS |
Remarks: A - Pole Adapter, AGM - Absorbed Glass Mat, DP - Dual Poles, EMS - Electrolyte Mixing System, H - Handle, HD - Heavy Duty, JIS - Japanese Poles, K - Kamina, KH - Kamina Handle, M - Lawn Mower Battery, ME - Magic Eye, P - Post Poles, S - Stud Poles, SMF - Maintenance Free = Sealed

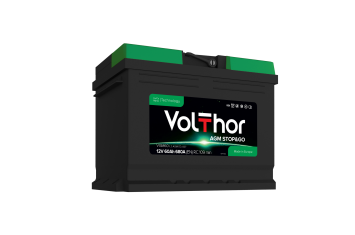

VOLTHOR AGM STOP&GO
L2 AGM
Ident Nr.: 1002835
Capacity (Ah): 60
EN (A): 680
Dimensions (mm): 242x175x190
Box Type: L2
DIN Marking: L2 AGM
Short Code: VGM60

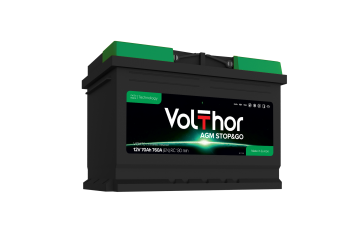

VOLTHOR AGM STOP&GO
L3 AGM
Ident Nr.: 1002836
Capacity (Ah): 70
EN (A): 760
Dimensions (mm): 278x175x190
Box Type: L3
DIN Marking: L3 AGM
Short Code: VGM70

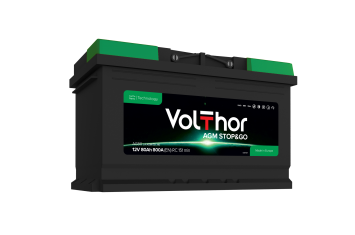

VOLTHOR AGM STOP&GO
L4 AGM
Ident Nr.: 1002837
Capacity (Ah): 80
EN (A): 800
Dimensions (mm): 315x175x190
Box Type: L4
DIN Marking: L4 AGM
Short Code: VGM80

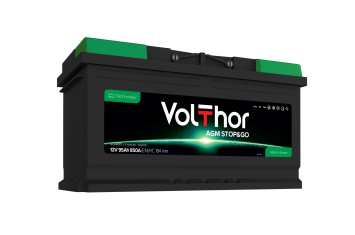

VOLTHOR AGM STOP&GO
L5 AGM
Ident Nr.: 1002838
Capacity (Ah): 95
EN (A): 850
Dimensions (mm): 353x175x190
Box Type: L5
DIN Marking: L5 AGM
Short Code: VGM95

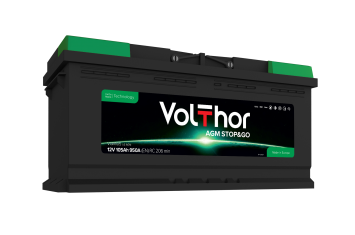

VOLTHOR AGM STOP&GO
L6 AGM
Ident Nr.: 1002839
Capacity (Ah): 105
EN (A): 950
Dimensions (mm): 394x175x190
Box Type: L6
DIN Marking: L6 AGM
Short Code: VGM105
VOLTHOR AGM STOP&GO
57024 AGM
Ident Nr.: 1002840
Capacity (Ah): 75
EN (A): 750
Dimensions (mm): 261x173x198/220
Box Type: D26
DIN Marking: 57024 AGM
Short Code: VGM75
VOLTHOR AGM STOP&GO
57024 AGM
Ident Nr.: 1002841
Capacity (Ah): 75
EN (A): 750
Dimensions (mm): 261x173x198/220
Box Type: D26
DIN Marking: 57024 AGM
Short Code: VGM75X
