TAB MAGIC TRUCK BATTERIES
TAB Magic Truck commercial vehicle batteries utilises the latest innovations in Ca/Ca manufacturing technology, providing for the highest cold start performance and superior reliable power as demanded by the latest generation of commercial vehicles with high energy drain. The SMF lid/cover provides complete roll over spill protection and is entirely maintenance free throughout the batteries life.
Main features:
-
Sealed cover construction.
-
The expanded metal technology results in better corrosion resistance and providing a longer life time.
-
The level indicator (magic eye) provides an instant status check.
-
Explosion protection prevents flame brake-in into the battery.
-
Ideal for cars with lots of electrical equipment.
-
Battery of highest quality.
| Art. No. |
DIN Marking |
Short Code |
Ah (C20) |
Box Type |
EN (A) |
LxWxH (mm) |
BHD |
Layout |
Weight (kg) |
PCS/pallet (EUR/CNT) |
Remarks* |
TDS |
| 1000493 |
63544 SMF |
TM13M |
135 |
MAC110 |
850 |
509x175x196/218 |
B3 |
3 |
33.1 |
24/40 |
SMF, ME, H, HD |
TDS |
| 1001224 |
64030 SMF |
TM14 |
140 |
A |
850 |
507x188x200/222 |
B0 |
3 |
35.3 |
24/35 |
SMF, ME, H, HD |
TDS |
| 1000497 |
65048 SMF |
TM15M |
150 |
MAC110 |
1000 |
509x175x196/218 |
B3 |
3 |
36.4 |
24/40 |
SMF, ME, H, HD |
TDS |
| 1001756 |
65018 SMF |
TM15 |
150 |
B |
950 |
513x222x194/216 |
B0 |
3 |
39.6 |
21/35 |
SMF, ME, H, HD, EMS |
TDS |
| 1001474 |
68032 SMF |
TM18 |
180 |
B |
1100 |
513x222x194/216 |
B0 |
3 |
42.8 |
21/28 |
SMF, ME, H, HD, EMS |
TDS |
| 1000249 |
70027 SMF |
TM20 |
200 |
C |
1200 |
517x275x214/236 |
B0 |
3 |
52.2 |
18/24 |
SMF, ME, H, HD, EMS |
TDS |
| 1000391 |
72527 SMF |
TM22 |
225 |
C |
1300 |
514x275x214/236 |
B0 |
3 |
55.8 |
18/24 |
SMF, ME, H, HD, EMS |
TDS |
Remarks: A - Pole Adapter, AGM - Absorbed Glass Mat, DP - Dual Poles, EMS - Electrolyte Mixing System, H - Handle, HD - Heavy Duty, JIS - Japanese Poles, K - Kamina, KH - Kamina Handle, M - Lawn Mower Battery, ME - Magic Eye, P - Post Poles, S - Stud Poles, SMF - Maintenance Free = Sealed

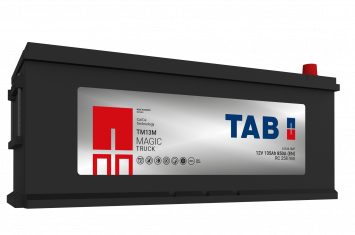

TAB MAGIC TRUCK
63544 SMF
Ident Nr.: 1000493
Capacity (Ah): 135
EN (A): 850
Dimensions (mm): 509x175x196/218
Box Type: MAC110
DIN Marking: 63544 SMF
Short Code: TM13M

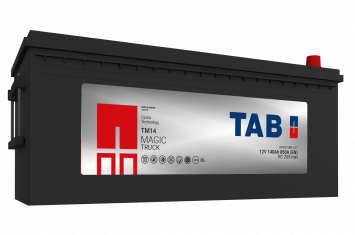

TAB MAGIC TRUCK
64030 SMF
Ident Nr.: 1001224
Capacity (Ah): 140
EN (A): 850
Dimensions (mm): 507x188x200/222
Box Type: A
DIN Marking: 64030 SMF
Short Code: TM14
TAB MAGIC TRUCK
65048 SMF
Ident Nr.: 1000497
Capacity (Ah): 150
EN (A): 1000
Dimensions (mm): 509x175x196/218
Box Type: MAC110
DIN Marking: 65048 SMF
Short Code: TM15M

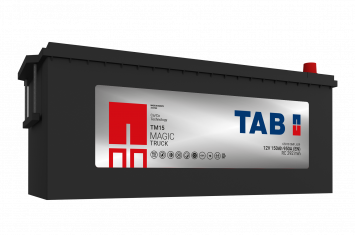

TAB MAGIC TRUCK
65018 SMF
Ident Nr.: 1001756
Capacity (Ah): 150
EN (A): 950
Dimensions (mm): 513x222x194/216
Box Type: B
DIN Marking: 65018 SMF
Short Code: TM15

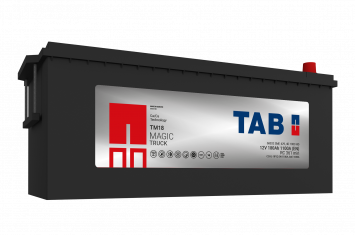

TAB MAGIC TRUCK
68032 SMF
Ident Nr.: 1001474
Capacity (Ah): 180
EN (A): 1100
Dimensions (mm): 513x222x194/216
Box Type: B
DIN Marking: 68032 SMF
Short Code: TM18

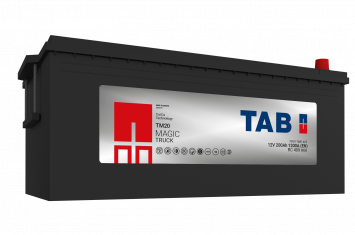

TAB MAGIC TRUCK
70027 SMF
Ident Nr.: 1000249
Capacity (Ah): 200
EN (A): 1200
Dimensions (mm): 517x275x214/236
Box Type: C
DIN Marking: 70027 SMF
Short Code: TM20
TAB MAGIC TRUCK
72527 SMF
Ident Nr.: 1000391
Capacity (Ah): 225
EN (A): 1300
Dimensions (mm): 514x275x214/236
Box Type: C
DIN Marking: 72527 SMF
Short Code: TM22
